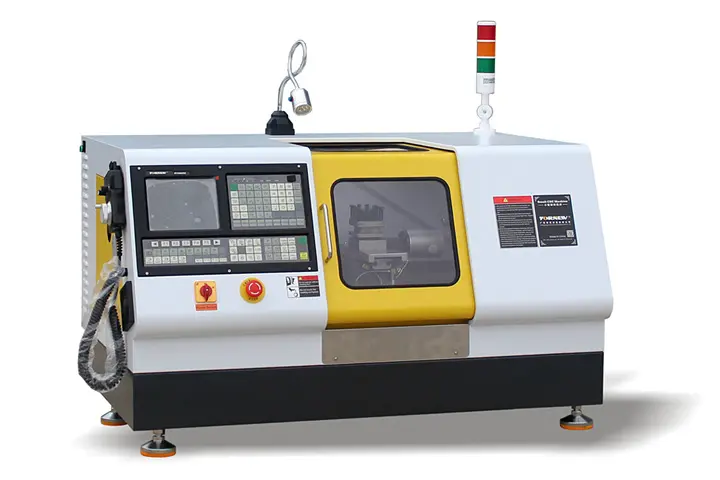

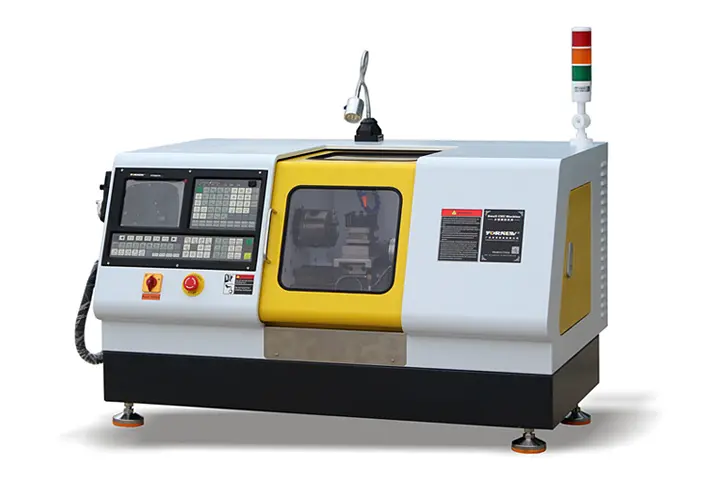

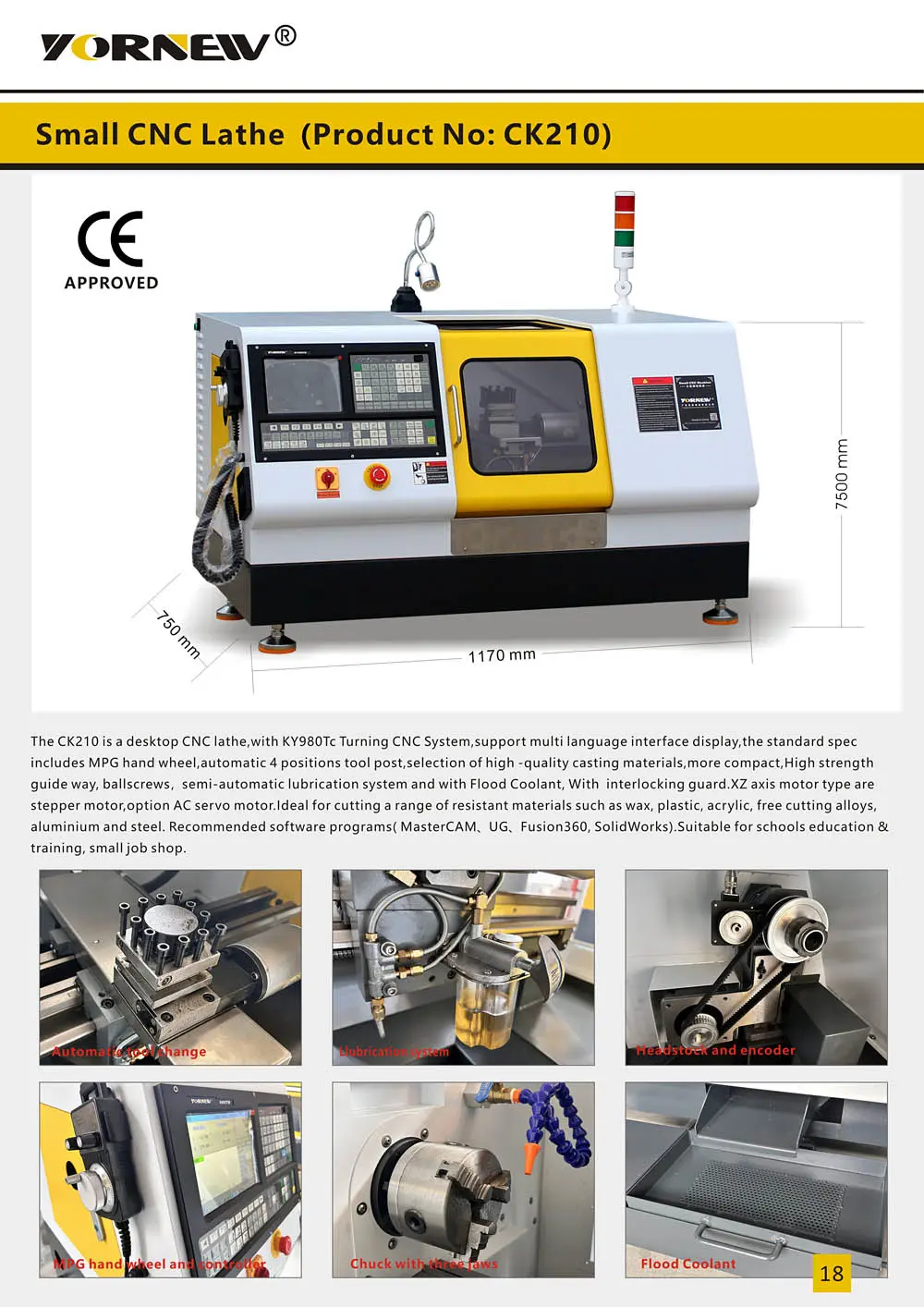

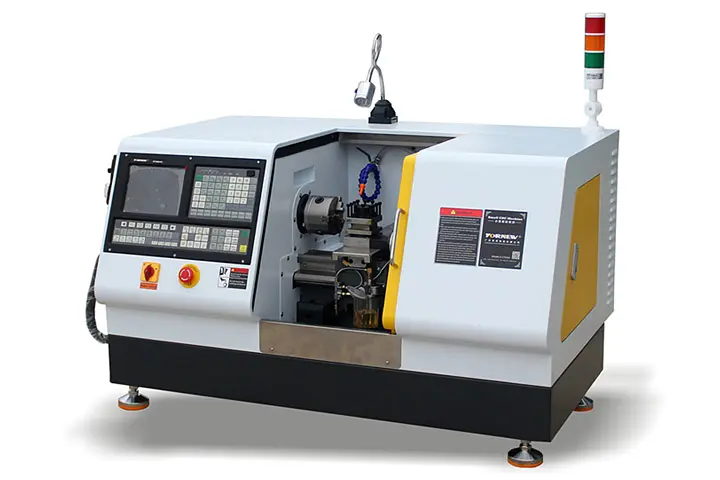

The CK210 is a desktop CNC lathe equipped with the KY980Tc turning control system. It features a multi-language interface and supports programming with international standard G-codes and M-codes. Offline programming via CAD/CAM software is also available, with MasterCAM, UG and Fusion 360 being our recommended options.

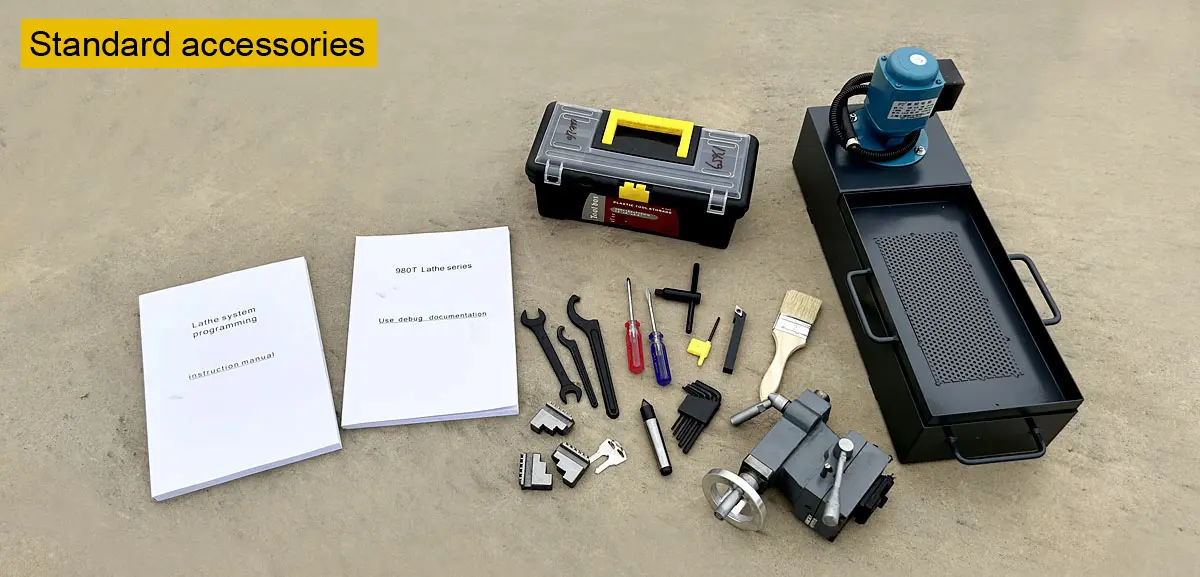

Standard configurations include an MPG handwheel and a 4-station automatic turret. The machine is built with premium cast iron for solid rigidity, fitted with high-strength guideways and ball screws. It also comes with a semi-automatic lubrication system, flood coolant system and interlocking safety guards.

This unit runs on single-phase 110V or 220V power supply. It adopts a 1.2 kW servo spindle motor, and both X and Z axes are driven by AC servo motors.

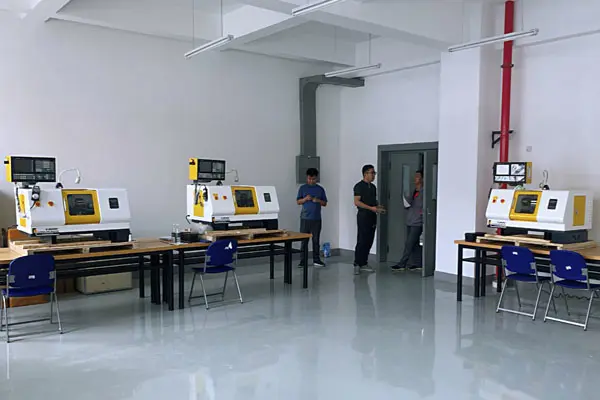

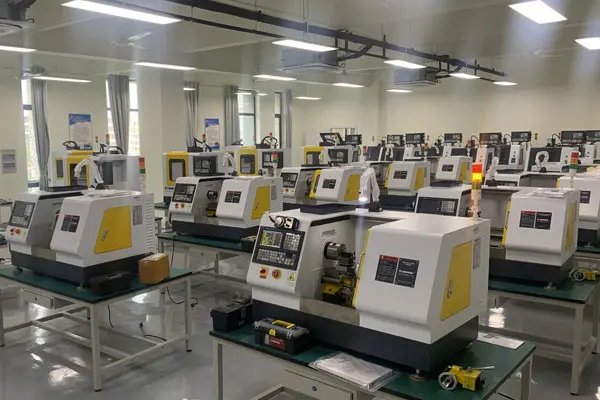

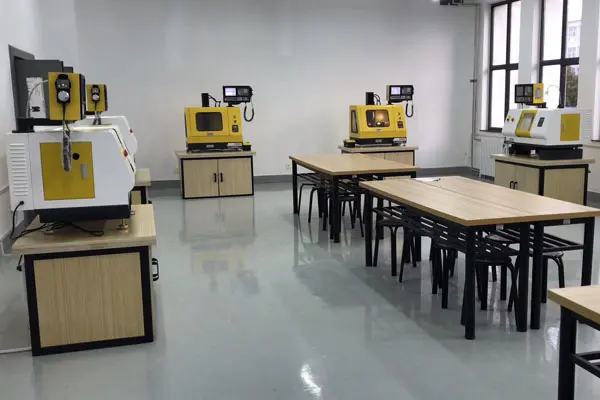

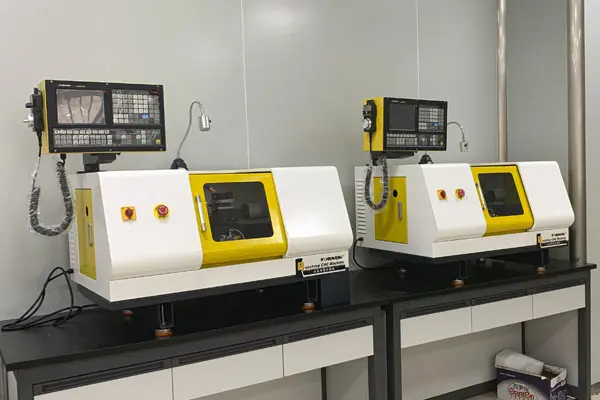

Designed for machining aluminum alloy, brass and steel, this compact CNC lathe is perfectly suited for STEAM education, CNC training in schools, as well as small machining workshops.

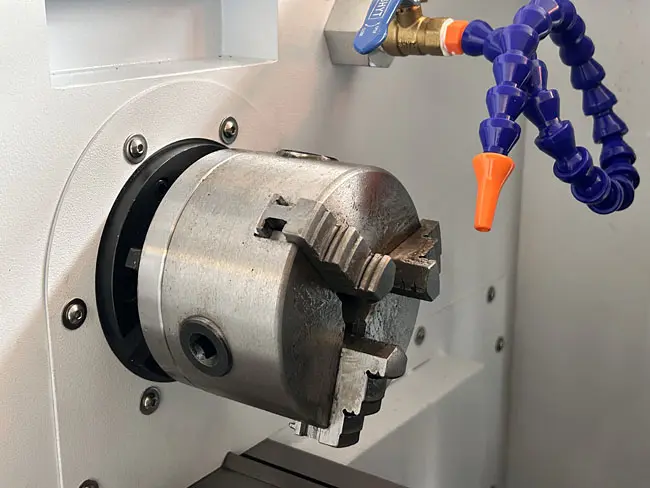

Chuck with three jaws

100mm 4 inch self-centering,optional 4-jaw chuck.Use cast iron spindle box,It has good rigidity and stability, which benefits to the machining precision.Spindle with encoder, capable of turning threads.

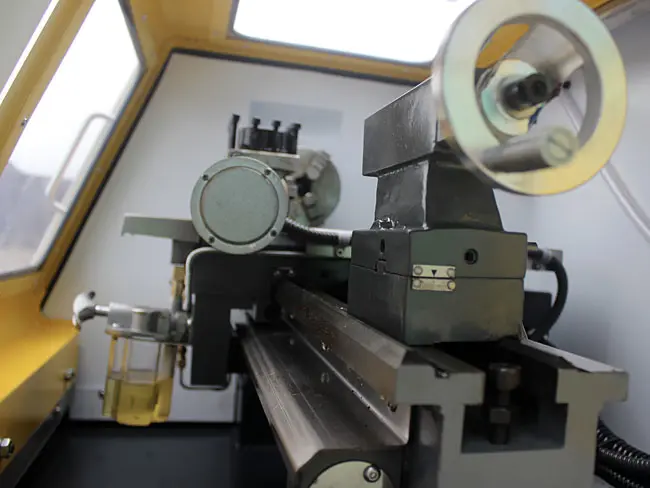

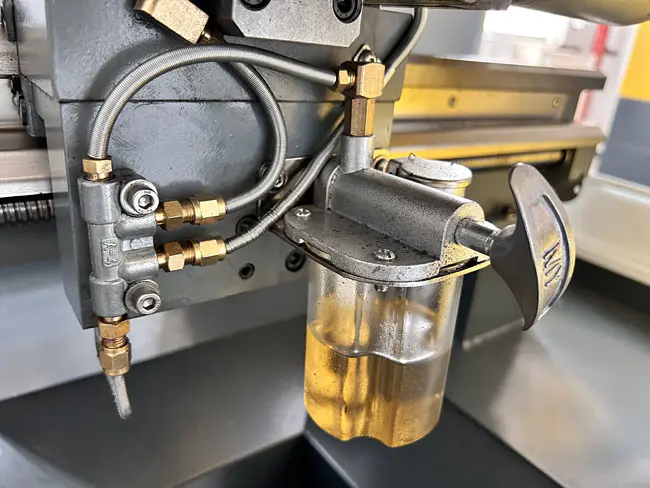

Lubrication system

This machine is designed with a guide rail lubrication system, for extended machine lifespan.

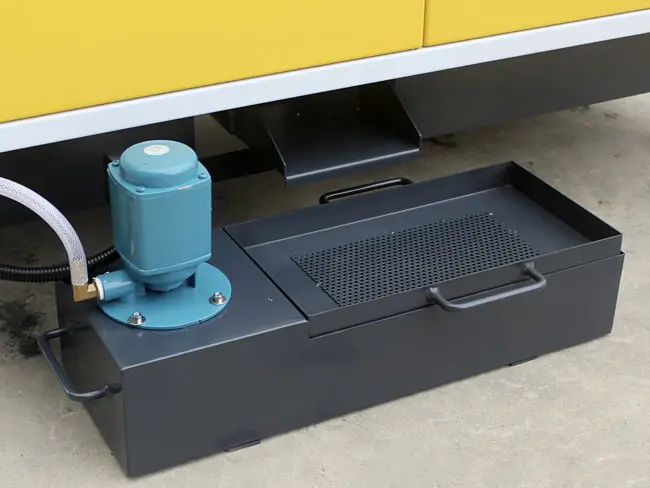

Efficient Cooling and Filtration

Our large-capacity circulation cooling water tank, equipped with a filtration system, effectively dissipates heat and removes impurities, ensuring optimal performance and extending the lifespan of your tools . With manual and g-code automatic control.

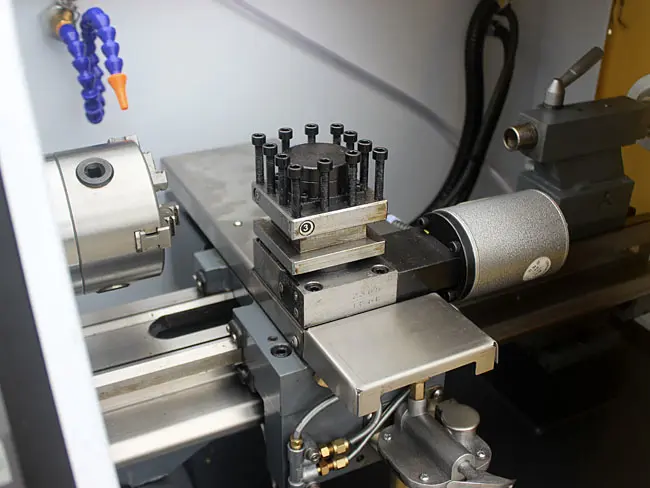

Automatic tool change

Equipped with a 4-station automatic tool change for processing more complex parts,optional 8-station automatic tool change.Turning tool specifications is 12*12mm .

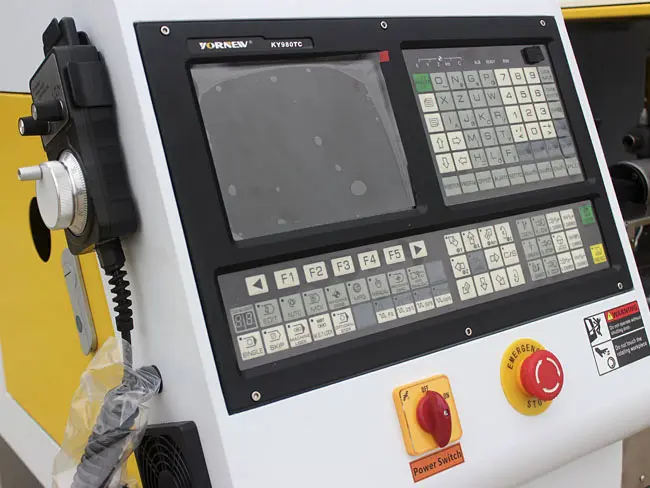

Industrial Lathe CNC system

Industrial Lathe CNC system,more stable and more durable, and operate more simple， while the integrated handwheel trial cutting function allows you to verify the accuracy of your program and positioning before committing to the final machining process.

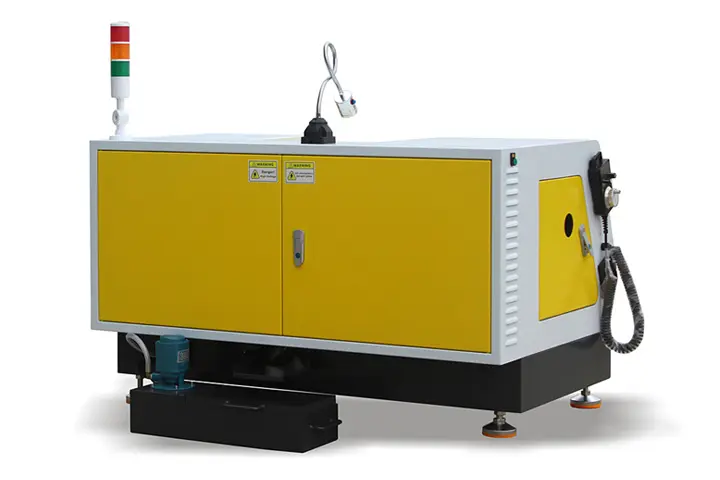

Machine tool body

Machine tool bod selection of high-quality casting materials,with lathe tailstock,semi-automatic lubricSation system,protect the rail life and ball screws for unmatched precision.
