Introduction
The Compact Desktop CNC Lathe is specially designed for beginners, focusing on ease of operation and space-saving performance. With its compact size, it can be easily placed on a desktop or workbench, making it perfect for home workshops, hobbyists, and entry-level users who want to learn CNC turning. The user-friendly control system simplifies complex operations, with clear buttons and intuitive interface that allow even those without professional experience to get started quickly—no complicated programming or technical training is required.

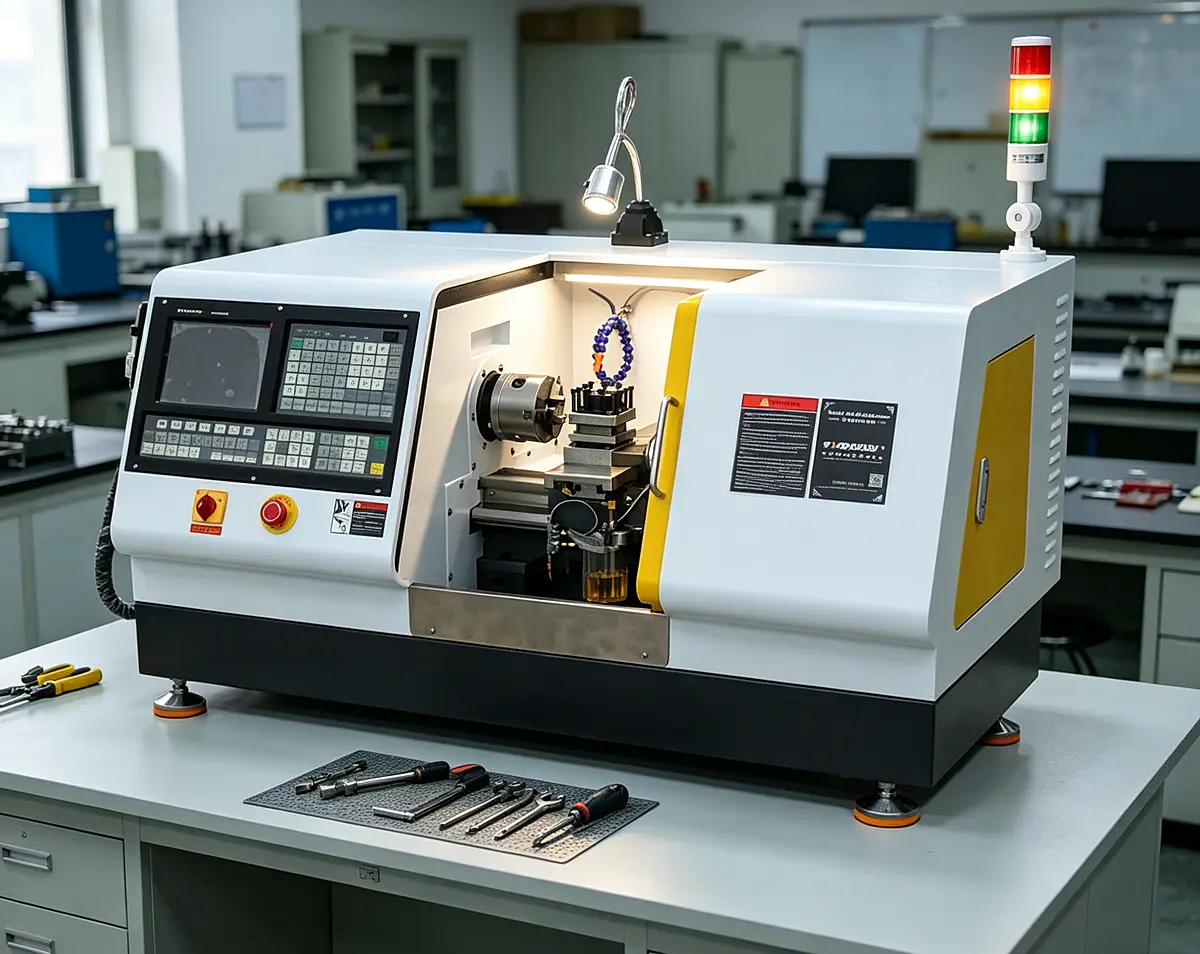

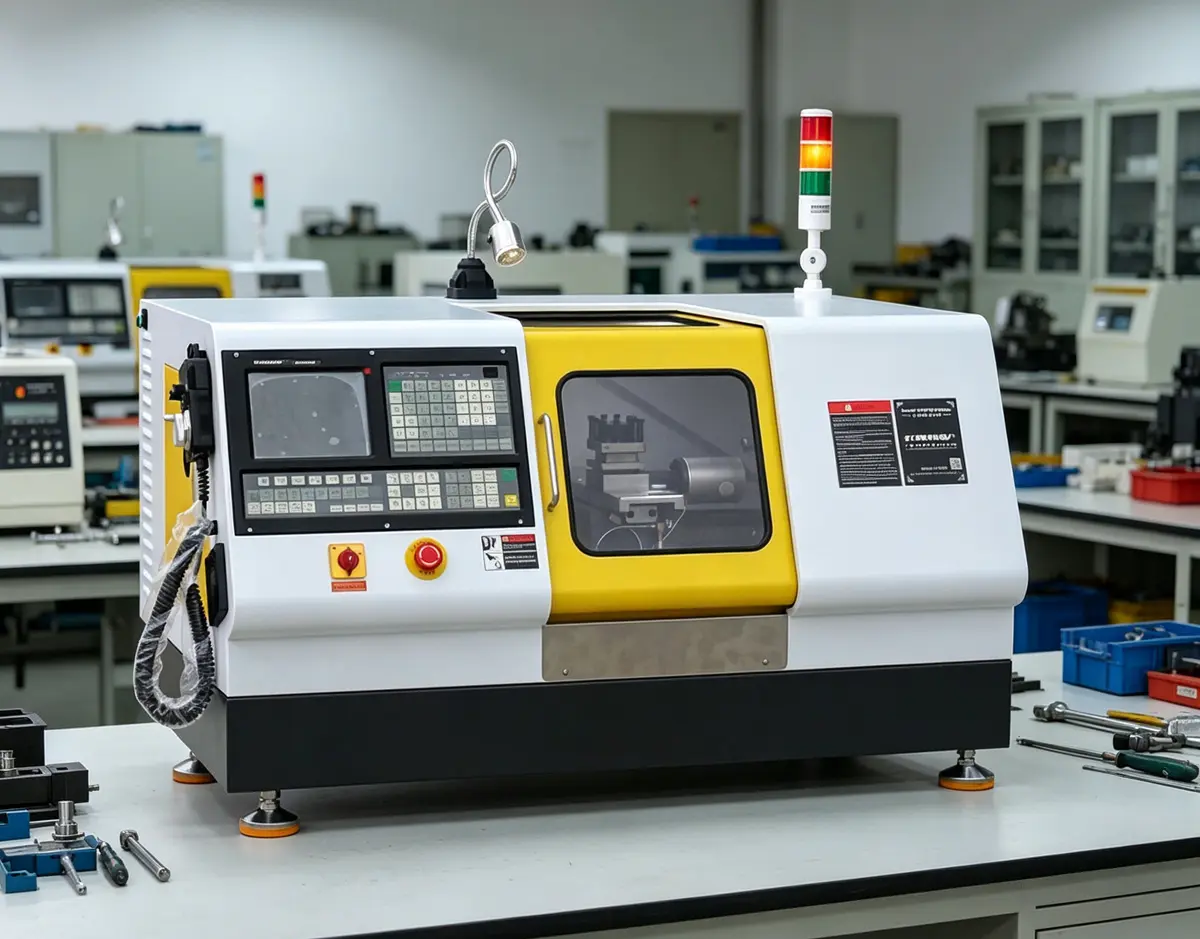

CK210 Compact Desktop CNC Lathe
CK210 Compact Desktop CNC Lathe
This desktop CNC lathe supports basic metal turning tasks, meeting the needs of beginners for practice, small-scale production, and DIY projects. It maintains stable performance while being easy to operate, with simple setup steps and clear operation guidelines, helping beginners master CNC turning skills step by step. Its compact design not only saves space but also ensures easy movement and storage, making it a practical and cost-effective choice for anyone who wants to start their CNC turning journey.
Product No: CK210
Product Name: Compact Desktop CNC Lathe
Compact Desktop CNC Lathe
| Technical parameters |
| Turning diameter over bed(max) |
210mm |
| Chuck diameter |
100mm |
| Spindle speed |
300-1750r/min(control speed of G code) |
| Spindle through-hole |
26mm |
| Spindle mount |
MT4 |
| Spindle motor power |
1100W |
| X axis travel |
100mm |
| Z axis travel |
300mm |
| X/Z axis motor |
400W Servo Motor |
| The max moving speed |
8000mm/min |
| The max feeding speed |
2000mm/min |
| Control system |
KY 980Tc Turning CNC System,Optional siemens 808D |
| MPG handwheel |
4 axis |
| Automatic tool change system(ATC) |
4 Tools (option 8 tools) |
| Tool dimension |
12*12mm |
| Tailstock taper |
MT2 |
| Tailstock sleeve diameter |
26mm |
| Travel of tailstock |
25mm |
| Positioning accuracy: |
0.03mm |
| Repeatability accuracy |
0.02mm |
| Power |
220VAC / 110VAC |
| Weight(NW/GW) |
220/250KG |
| Overall dimension |
1170*750*800mm |
| Packing size |
1200*860*1000mm |
